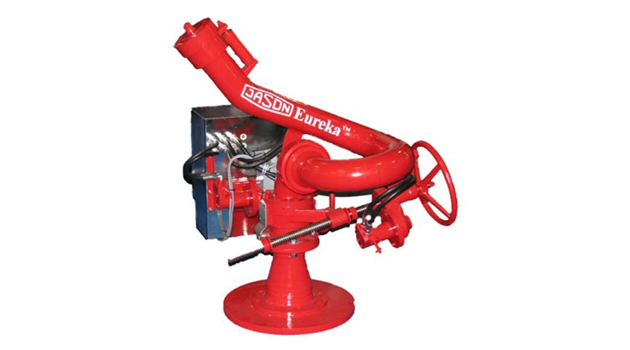

MM402HJF-F-C-02
Design Data
- Max Capacity : 600m3/h
- Pressure class : PN 16
- Size : DN 100mm
- Standard flange : DIN 2633 FF
- Weight : 125 Kg (approx)
- Elevation : - 30°/+ 75° max
- Azimuth sweep : 350° max
GENERAL INFORMATION
JASON fire monitor model MM402HJF-F-C-02, is a single flow path monitor, designed for marine applications, such as Fire Fighting Vessels, Supply Vessels and Ocean going Tugs. It is part of a modular design concept for monitors that covers units with manual or electric/hydraulic control and may be fitted with various nozzles for water and foam.
MAIN DATA
| Model | MM402HJF-F-C-02 |
| Type | Single flow path water monitor with electric/hydraulic remote control and fitted with jet/fog nozzle |
| Operation | Hydraulic motors and joy-stick remote control. Two hand wheels for manual back up. The hand wheels may be disengaged in remote controlled mode |
| Materials | Waterway in bronze and high grade stainless steel. Swivels and gears sealed and greased for life. AISI 316 hydr. tubes and fittings. Carbon/teflon type water seals |

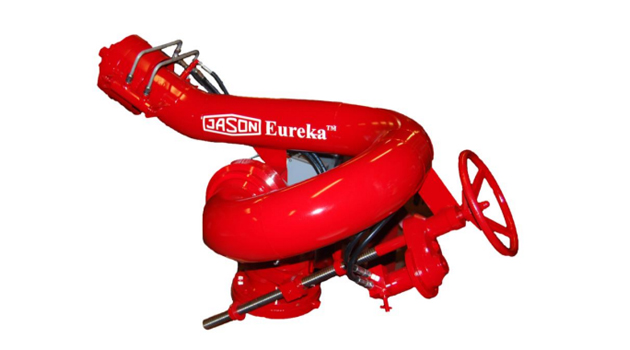

MM602HJF-F-C-02
Design Data
- Max Capacity : 1200m3/h
- Pressure class : PN 16
- Size : DN 150mm
- Standard flange : DIN 2633 FF
- Weight : 180 Kg (approx)
- Elevation : - 30°/+ 75° max
- Azimuth sweep : 330° max
GENERAL INFORMATION
JASON model MM602HJF-F-C-02, is a single flow path marine fire fighting monitor, designed for applications, such as Fire Fighting Vessels, Supply Vessels and Ocean going Tugs. It is electric hydraulic remote controlled and fitted with a fixed capacity Jet/Fog type nozzle. Nozzle control accomplished from the monitor's control panel, which enables adjustment of the jet type from straight stream to fog shape. This special capability makes the remote controlled nozzle a far better tool against fire than more conventional fixed nozzle monitors equipped with a deflector.
MAIN DATA
| Model | MM602HJF-F-C-02 |
| Type | Single flow path water monitor with electric/hydraulic remote control and fitted with jet/fog nozzle. |
| Operation | Hydraulic motors and joy-stick remote control. Two hand wheels for manual back up. The hand wheels may be disconnected in remote control mode |
| Materials | Waterway in bronze and high grade stainless steel. Swivels and gears sealed and greased for life. AISI 316 hydr. tubes and fittings. Carbon/teflon type water seals |

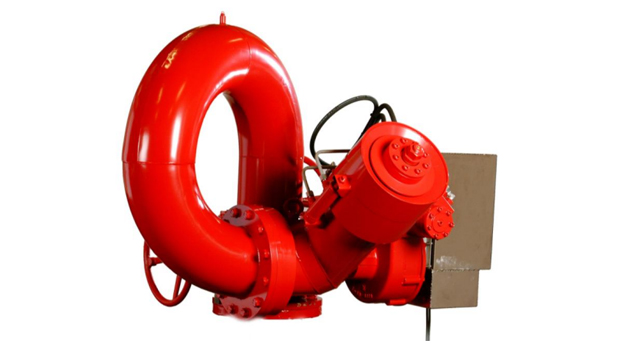

FM250HJF-F-C-02
Design Data
- Max Capacity : 2800m3/h
- Pressure class : PN 16
- Size : DN 250mm waterway
- Standard flange : DIN 2633 FF
- Weight : 485 Kg (approx)
- Elevation : - 30°/+ 75° max
- Azimuth sweep : 330° max
GENERAL INFORMATION
JASON model FM250HJF-F-02, is a single flow path marine fire fighting hydraulic monitor, designed for applications such as Fire Fighting Vessels, Supply Vessels and Ocean going Tugs. It is electric remote controlled and fitted with a Jet/Fog type nozzle. Adjustment of the jet pattern from straight stream jet to fog shape is by a single switch on the monitor control panel. This special capability makes the remote controlled nozzle a far better tool against fire than more conventional fixed nozzle monitors equipped with a jet deflector.
MAIN DATA
| Manufacturer | Jason Engineering AS |
| Model | FM 250HJF-F-C-02 |
| Type | Single flow path monitor with Jet/Fog nozzle and electric remote control |
| Type of nozzle fitted | Jet/fog nozzle |
| Operation | Electric Joy-stick remote control. Two hand wheels for back-up control. The hand wheels can be engaged / disengaged by pulling/pushing them out-in |
| Swivel gear | Worm and wheel type, sealed and greased for life. |
FM400HD-03
Design Data
- Max Capacity : 3900m3/h
- Pressure class : PN 25(360 PSI)
- Size : DN 400mm
- Standard flange : DIN 2634 FF
- Weight : 1550 Kg
- Elevation : - 30°/+ 75° max
- Azimuth sweep : 330° max
GENERAL INFORMATION
Jason series FM400HD-03, is a single flow path marine water fire fighting monitor, designed for marine applications, such as Fire Fighting Vessels, Supply Vessels and Ocean going Tugs. It is part of a modular design concept for monitors that covers units with manual, electric hydraulic and which may be fitted with various nozzles for water and foam.
MAIN DATA
| Model | FM400HD-03 |
| Type | Single flow path long barrel water monitor with electric hydraulic remote control. Straight jet type water nozzle with jet deflector. |
| Operation | Electric joystick remote control. Two hand wheels for back up control. (Hand wheels to be disengaged in remote control mode). |
| Materials | All "wet parts" in cast bronze and high-grade stainless steel; gear housing in cast iron. Jason make split type ball bearing system in high-grade carbon steel, heat-treated. Teflon/carbon composite water seals. |
| Swivel gear | Worm and wheel type, sealed and greased for life |
| Remote control | Electric hydraulic control system with low speed/high torque hydraulic motors. |
