이동용 소화펌프

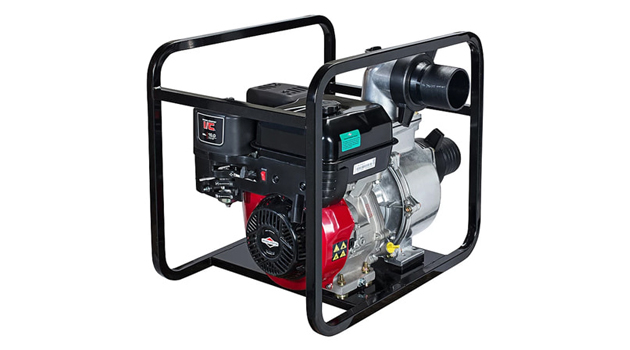

벵가드 엔진 양수기 WP40-135(E)
소화펌프 사양
- 최대출력 : 13.5 HP
- 배기량 : 420cc
- 시동방식 : 자동
- 중량 : 67kg
양수기
| 모델 | 흡입구지름 | 토출구지름 | 방출용량(리터/분당) | 흡입양정 | 토출양정 |
| WP40-135(E) | 100mm(4인치) | 100mm(4인치) | 2000/min | 7m | 32m |
엔진
| 모델 | 최대출력 | 배기량 | 사용연료 | 연료탱크용량 | 시동방식 |
| 25T2 | 13.5HP | 420CC | 무연휘발유 | 6.6L | 자동 |
크기
| 치수(가로X세로X높이) | 중량 |
| 650mmX500mmX580mm | 67(70)Kg |

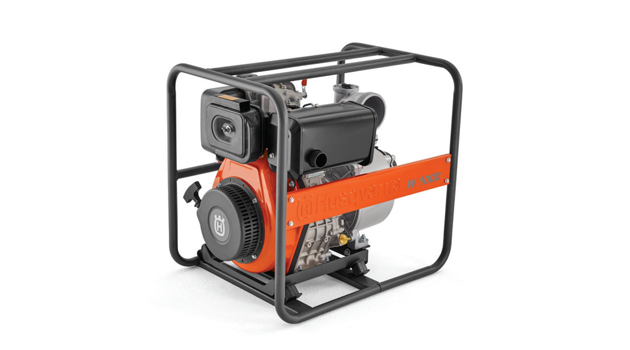

HUSQVARNA W100D
HUSQVARNA W100D
- A large water pump for irrigation and draining. Easy-starting diesel engine and high spec pump house allows efficiant and reliable work even in tough conditions. Pumps up to 75 m3 of water per hour. Featuring a protection frame that protects the machine from damage and serves as lifting handle.
CAPACITY
| Max delivery capacity | Power output |
| 92000 l/h | 6.3 kW |
DIMENSIONS
| Article gross weight | Article net weight |
| 67000 g | 65000 g |
ENGINE
| Cylinder displacement | Motor/engine model |
| 418 см³ | Husqvarna Engine |
LUBRICANTS
| Engine oil capacity (L) | Engine oil type | Fuel consumption | Fuel tank volume (with reserve) | Power/fuel type |
| 1.65 | SAE30 | 280 g/kWh | 4.6 l | Diesel |
PACKAGING
| Packaging height | Packaging length | Packaging volume | Packaging width | Quantity in Master pack |
| 625 mm | 665 mm | 207.81 dm³ | 500 mm | 1 |

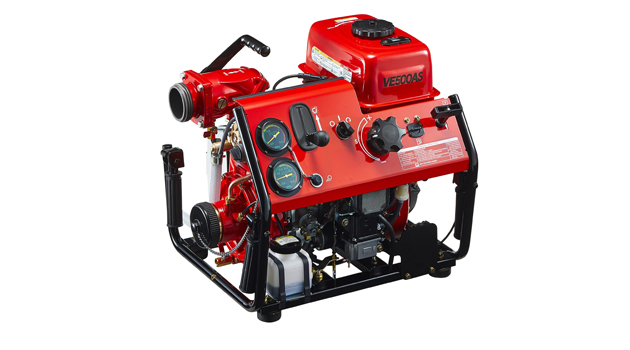

VE500AS
Small and compact with leading features
Engine
198mL Tohatsu 2-stroke, air-cooled gasoline engine
Authorized output
8.6kW(11.7PS)
Pump performance
525 liter /min. at 0.6MPa 250 liter /min. at 0.8MPa Priming Rotary vane vacuum pump
Dry weight
49kg

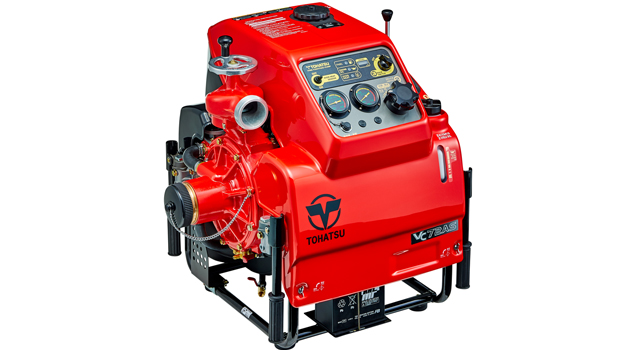

VC72AS
Simplify and maximize the ability for quick response.
Engine
617mL Tohatsu 2-stroke, water-cooled gasoline engine
Authorized output
40.8PS (30kW)
Pump performance
1550 liter / min. at 0.6MPa 1300 liter / min. at 0.8MPa 950 liter / min. at 1.0MPa
Dry weight
85 kg
