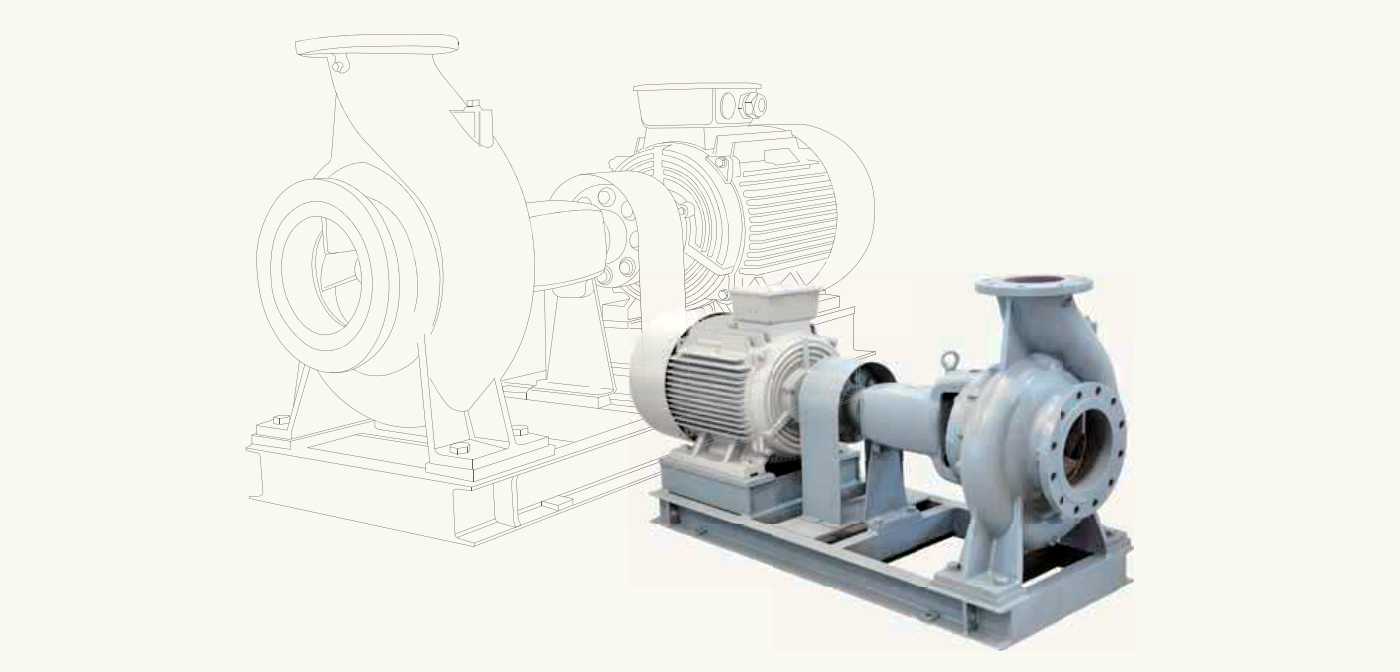

FSC END SUCTION VOLUTE PUMP
Specification (PUMP)
| Maximum working pressure | 10bar (10.2kgf/cm2) |
16bar (16.3kgf/cm2) |
25bar (25.5kgf/cm2) |
|
| Liquid Handled | Name | clean water(PH:5.8~8.6) | ||
| Temperature | 0~100℃ (※1) | |||
| Construction | Impeller | Enclosed | ||
| Shaft seal | Mechanical seal | Mechanical seal (balanced) | ||
| Sealing | Self flushing | |||
| Bearing | Sealed ball bearing | |||
| Flange | JIS 10K RF | JIS 16K RF | JIS 20K RF | |
| Material | Casing | Cast Iron | Ductile Cast Iron/Cast Iron(※1) | Ductile Cast Iron |
| Impeller | Bronze Casting | |||
| Shaft | Stainless steel | |||
| Mechanical seal | Ceramic/Carbon/NBR | SiC/Carbon/FPM | ||
Specification (Motor)
| Number of poles | 2 poles | 4 poles |
| Synchronous speed | 3600min-1 | 1800min-1 |
| Phase | 3 phase | |
| Voltage | 380V±10% | |
| Type | Totally enclosed fan cooled(indoors) | |
| Protection degree | IP55 | |
| Frequency | 30~60Hz | |
Optional
- Totally enclosed fan cooled(outdoors)
- Varying frequency running (0 ~ 60Hz)
- Other types of motor that user require
Accessories
| Standard | Optional |
| Common base | JIS companion flange |
| Coupling | Disc couplings |
| Coupling guard | - |
